PhotonClean © - "the" new reference in real sustainable Laser Cleaning
The Best Laser Cleaning machines for handheld, Robot, Cobot, automation
INDUSTRIAL LASER CLEANING EQUIPMENT
PRECISE, AFFORDABLE, COST EFFECTIVE AND CLEAN
Lasermach develops and produces the world's most advanced industrial laser cleaning equipment for manual and automated use. Our laser cleaning systems range from 50 to 2000 watt of extremely precise laser light that effortlessly removes rust, dust, oxides, oil and other contaminations from metal, plastic,ceramics, glass, stone or concrete. And as this cleaning technique leaves the surface beneath untouched, our laser systems offer unexpected possibilities for a constantly growing number of industrial applications, ranging from dirt removal over surface structuring to surface preparation for welding or joining or non destructive testing.
PhotonClean - Series Laser Cleaning Machines
PhotonClean ©: Backpack laser cleaning Machines
Backpack Laser Rust Removal Machine
Backpack laser cleaning machine is a high-tech and latest product of surface cleaning.
Easy removal of :
- Dirt
- Paint
- Rust
- Grease
- tar
- oil
PhotonClean ©: PORTABLE ECO Green Backpack Laser Cleaning Machine
PORTABLE Energy saving Laser CLEANING machines
Heavy Duty energy saving Backpack Laser cleaning Machine
Air cooled Pulsed laser Cleaning machine
Pulsed Laser 100Watt or 150Watt Model
Optional with battery pack for independent cablefree working.
Ultra Portable : 100W < 14.2kg -- 150W < 16.8 kg
High Frequency Pulsed Wave Laser
Super compact Portable Laser Cleaning Machine
200w super compact Laser Cleaning Machine
Affordable and efficient rust/paint/oil/dirt removal from metal
Trolley type 200W laser Cleaning Machine
High energy Saving 1laser cleaning Machine
With Energy saving Technology
Easy transportable
rigid construction
200 watt

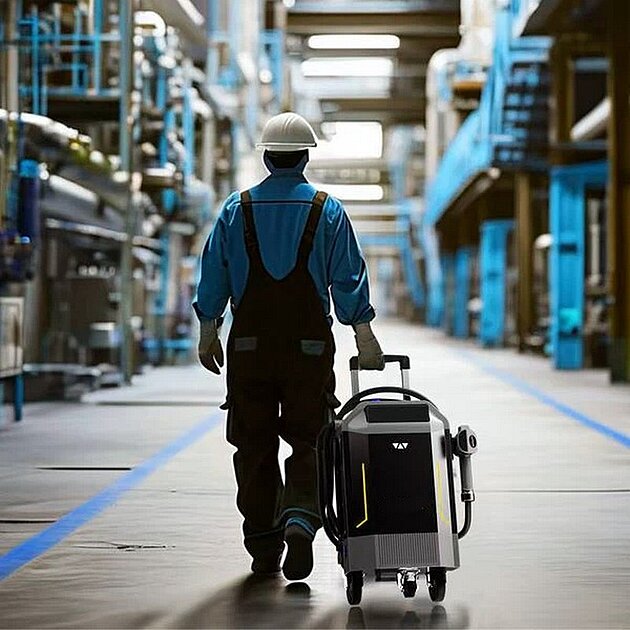

MOVABLE
TROLLEY CLEANING LASERS
GO PRACTICALLY ANYWHERE WITH YOUR LASER ON WHEELS
100 Watt - 2000 Watt
<200w =Air-cooled
>200Watt = Water cooled
MOPA or Q-Switch laser
CUSTOM MADE
CUSTOM-MADE PROJECTS
LASER CLEANING, OPTIMISED FOR DIFFERENT APPLICATIONS!
100 Watt - 2000 Watt
<200w =Air-cooled
>200Watt = Water cooled
MOPA or Q-Switch laser
Laser-Swipe© Series: Ecologic Surface Laser Cleaning machines
Low power Cleaning Lasers - Medium Power Cleaning Lasers - High Power Cleaning lasers

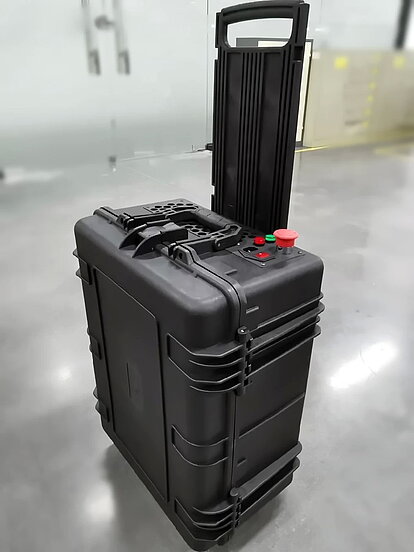

LOW & MEDIUM POWER Steel Flight Case type
Till 200 W Mopa Power cleaning in a professional steel flight case
Portable
Air Cooling
MOPA fine tune Power
or Q-Switch Brute Power
MEDIUM POWER Stage Case type
Till 300 W Power cleaning in a professional steel flight case
Movable
Air Cooling
MOPA fine tune Power Laser
or Q-Switch Brute Power Laser
HIGH and VERY HIGH POWER LASER CLEANING
High power portable laser cleaning
Moveble or Fixed
Water Cooling
Q-Switch or QCW/CW PURE Power
IN LINE BUILD-IN
Clean your productionline inline
Under construction
CUSTOM MADE
Cleaning units adapted to your specific needs
Under Construction
Indicational Surface Cleaning capacity for each laser power
This are only indicational values for Reference, based on our own experience, each case must be checked specific and results depend on the layers and the underground
| Surface cleaning indicational capacity | layer thickness | 100Watt | 200Watt | 300Watt | 500 Watt |
|---|---|---|---|---|---|
| Paint | m²/h | m²/h | m²/h | m²/h | m²/h |
| <50µm | 1 | 2 | 2,5 | 5 | |
| <100µm | 0,5 | 1 | 1,2 | 3,0 | |
| >100µm | 0,2 | 0,5 | 0,8 | 1,4 | |
| Oxide Layer or coated surface | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 5 | 9 | 12 | 15 | |
| <50µm | 2,5 | 4,5 | 6 | 7,5 | |
| >50µm | 1,5 | 3 | 4 | 5 | |
| Rusty Scale | m²/h | m²/h | m²/h | m²/h | m²/h |
| <50µm | 3 | 6 | 6 | 12 | |
| <100µm | 2 | 3 | 3 | 6 | |
| >100µm | 1 | 1,5 | 1,5 | 3 | |
| Carbon layer | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 3 | 5 | 8 | 10 | |
| <50µm | 2 | 3 | 4 | 7 | |
| >50µm | 1 | 2 | 2 | 5 | |
| Encrusted Dirt layer | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 3 | 5 | 8 | 10 | |
| <50µm | 2 | 3 | 4 | 7 | |
| >50µm | 1 | 2 | 2 | 5 |
High precision Power cleaning
Application Of MOPA Fiber Laser
- Precision Cleaning
- Multilayer cleaning by layer
- Fragile Surface saving precision cleaning
- Surface Heat
- Texturing Treatment
- Colorful Marking
- Precision Marking
- Film Cutting
- Anodic Aluminum Etching
Power Cleaning
Application Of Q-Switched or Pulsed Fiber laser
- Rust Removal
- Oil Cleaning
- Mold Surface Treatment
- Paint Stripping
- Welding Surface Pre-treatment
- Portrait Stone Surface Treatment
How to Choose the Right Laser Cleaning Machine?
Indicational Surface Cleaning capacity for each laser power
This are only indicational values for Reference, based on our own experience, each case must be checked specific and results depend on the layers and the underground
| Surface cleaning indicational capacity | layer thickness | 100Watt | 200Watt | 300Watt | 500 Watt |
|---|---|---|---|---|---|
| Paint | m²/h | m²/h | m²/h | m²/h | m²/h |
| <50µm | 1 | 2 | 2,5 | 5 | |
| <100µm | 0,5 | 1 | 1,2 | 3,0 | |
| >100µm | 0,2 | 0,5 | 0,8 | 1,4 | |
| Oxide Layer or coated surface | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 5 | 9 | 12 | 15 | |
| <50µm | 2,5 | 4,5 | 6 | 7,5 | |
| >50µm | 1,5 | 3 | 4 | 5 | |
| Rusty Scale | m²/h | m²/h | m²/h | m²/h | m²/h |
| <50µm | 3 | 6 | 6 | 12 | |
| <100µm | 2 | 3 | 3 | 6 | |
| >100µm | 1 | 1,5 | 1,5 | 3 | |
| Carbon layer | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 3 | 5 | 8 | 10 | |
| <50µm | 2 | 3 | 4 | 7 | |
| >50µm | 1 | 2 | 2 | 5 | |
| Encrusted Dirt layer | m²/h | m²/h | m²/h | m²/h | m²/h |
| <25µm | 3 | 5 | 8 | 10 | |
| <50µm | 2 | 3 | 4 | 7 | |
| >50µm | 1 | 2 | 2 | 5 |
